50L 100L 200L Yoghurt Pasteurizing Machine Plate Fruit Juice Pasteurizer Milk Pasteurizer Tank

The milk needs to be heated to a certain temperature and kept for a period of time before the purpose of killing microorganisms can be achieved. The use of thermal agitation can cycle sterilization, because bacteria will multiply at room temperature, and then the water is circulated to cool down, and it can be filled after cooling.

Application Fields of Pasteurization Tank:

It is suitable for community stores or start-up stores, family farms, and pastures with small stores and no 380v power supply. It is suitable for milk, goat milk, and camel milk. It is very suitable for individuals who are not suitable for other auxiliary equipment.

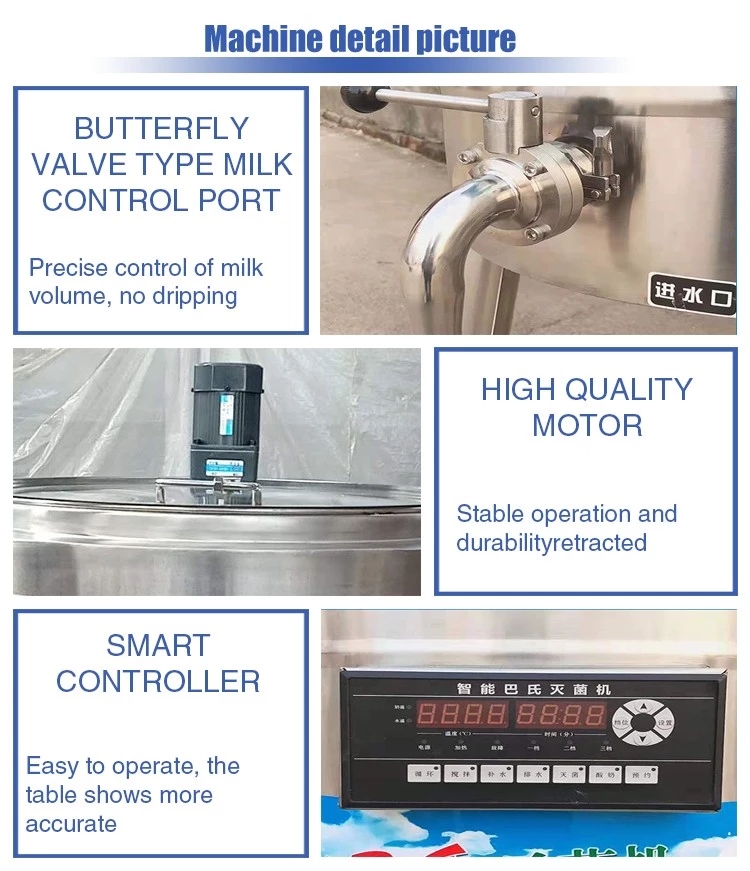

Pasteurizer Features:

1. Tap water to cool down

2. Heating the bottom of the tank

3. A circulating water pump can be installed at the bottom of the tank to reduce the upper and lower temperature difference during the sterilization process.

4. Refrigeration equipment can be added.



50L 100L 200L Yoghurt Pasteurizing Machine Plate Fruit Juice Pasteurizer Milk Pasteurizer Tank Working Video:

Sterilization And Fermentation Tank Technical Parameter:


Volume (L)	Heating power (KW)	Total power (KW)	Sterilization temperature (℃)	Sterilization time (minutes)	Voltage (V)	Size (MM)	Compressor cooling power (P)
50	6	6.5	75-95 (adjustable)	25-35 minutes	220/380	650*650*1300	1
75	6	6.5				680*680*1300	1
100	6	6.5				710*710*1300	1.5
150	9	9.75				750*750*1300	1.5
200	12	12.75				860*860*1400	2
300	12*2	24.75				950*950*1400	2
500	12*2	24.76				1050*1050*1500	3
1000	12*2	24.77				1400*1400*1500	5
