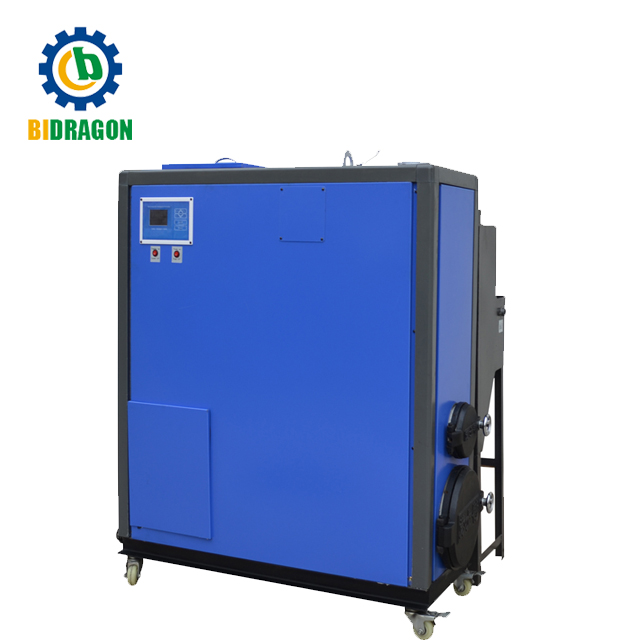

Wood Pellet Hot Water Boiler

Rated power: 0.08kw, 0.12kw, 0.23kw, 0.35kw, 0.7kw, 1.05kw, etc.
Outlet water temperature: 85/70℃
Heating efficiency: 90%-95%

Introduction

Application Scope:


This hot water boiler is heating by wood pellet and is widely applied in family, private villas, apartments, hotel, mansion, schools and other places which need sterilization hot water and heating.


Main Features:

1. High efficient and energy-saving: thermal efficiency more than 90%, flue gas temperature to chimney less than 120 degrees Celsius.
2. PLC control: user just starts the boiler with one-button, automatic ignition, automatic feeding, automatic temperature control, induced draft fan control(mode than 300000 kilocalories), automatic start-stop cycle, automatic fault alarm, water shortage alarm and pellet shortage alarm, etc.
3. Environmental protection: can be used in anywhere, even in the center of the city.
4. High safety: Operating at atmospheric condition, without any dangers.
5. Long life and high quality: The designed life is 6~8 years. It can be reach up to more than 10 years if the boiler in a good maintenance.
6. Self-cleaning and convenient maintenance
7. asy to install and operate
8. Low noise: It is unnecessary to equip with the silencer.
9. Low cost and labor save


Technical Parameter

Item / Model

BDW0.018

BDW0.035

BDW0.06

BDW0.08

BDW0.12

BDW0.18

BDW0.24

BDW0.35

BDW0.48

85/65-P

85/65-P

85/65-P

85/65-P

85/65-P

85/65-P

5/65-P

85/65-P

85/65-P

Rated thermal   power (Mw/h)

0.018

0.035

0.06

0.08

0.12

0.18

0.24

0.35

0.48

Rated thermal   output (Kcal/h)

1.5×104

3×104

5×104

7×104

10×104

15×104

20×104

30×104

40×104

Electric power   (W)

I. D. Fan

40W

40W

120W

120W

370W

550W

550W

750W

1.1KW

F. D. Fan

35W

40W

60W

80W

80W

250W

370W

550W

550W

Feeding Motor

60W

60W

90W

90W

90W

180W

180W

180W

180W

Ignitor

600W

600W

600W

600W

600W

600W

600W

600W

600W

Chimney diameter   (mm)

108

108

108

108

139

159

159

159

159

Water inlet   diameter (mm)

DN25

DN25

DN25

DN40

DN50

DN65

DN65

DN80

DN80

Fuel consumption   (kg/h)

3.5

7.5

12.5

18

25

38

50

75

100

Boiler   dimensions (mm)

1200*500*1 350

1230*440* 1160

1335*460* 1260

1500*525* 1390

1800*610* 1470

1950*720* 1600

2100*800* 1800

2400*950* 2000

2600*1100* 2200

Dust remover   dimensions (mm)

――

——

——

——

——

Φ550*1400

Φ550*1400

Φ550*1400

Φ650*1500

Boiler body   weight (KG)

180

210

290

320

670

800

1000

1300

1650

Reference   heating area(m2)

80-150

150-280

300-400

400-600

600-800

800-1200

1200-1600

1600-2400

2400-3200
