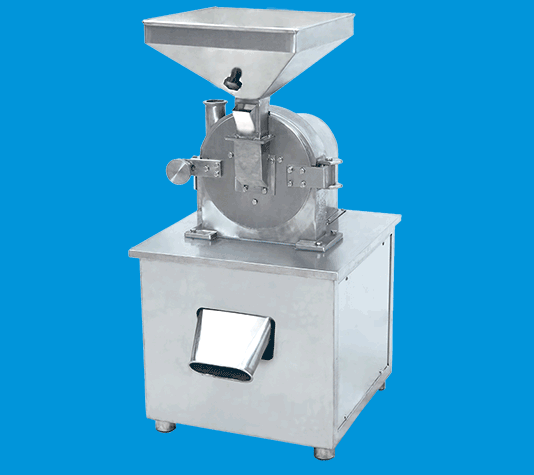

Turmeric Grinding Machine

Introduction

Turmeric Grinding Machine Introduction


1.This machine is suitable for pharmaceutical , chemical , food and other industries ,

2.It is the before procedure of fine grinding equipment.

3.It is not influenced by the material viscosity, hardness, softness, and fiber and other restrictions, any material can play better crushing effect.


Features of Tumeric Spices Crushing Machine

This tumeric grinding machine is a horizontal grinding structure, material from the hopper into the crushing chamber , the use of the impact of the rotating knife and fixed knife , cut and crushed , and the role of the centrifugal force , the material automatically flow to the exit . The equipment according to “GMP” standard design, the whole machine is made of stainless steel, simple structure, easy to clean, low noise, is the most ideal machine of coarse-crush.


Turmeric Grinding Machine

Technical Parameter

Items BCSJ-80 BCSJ-120 BCSJ-200 BCSJ-300
capacity(kg/h) 10-100 50-300 100-400 150-500
Inlet size(mm) ≤50 ≤100 ≤100 ≤100
Outlet size(mm) 1-20 1-20 1-20 1-20
RPM(r/min) 1400 1400 1400 1400
power(kw) 1.5 3 4 5.5
Dimension(mm) 600×500×950 700×800×1100 880×900×1250 1150*960*1700
weight(kg) 80 150 180 250
